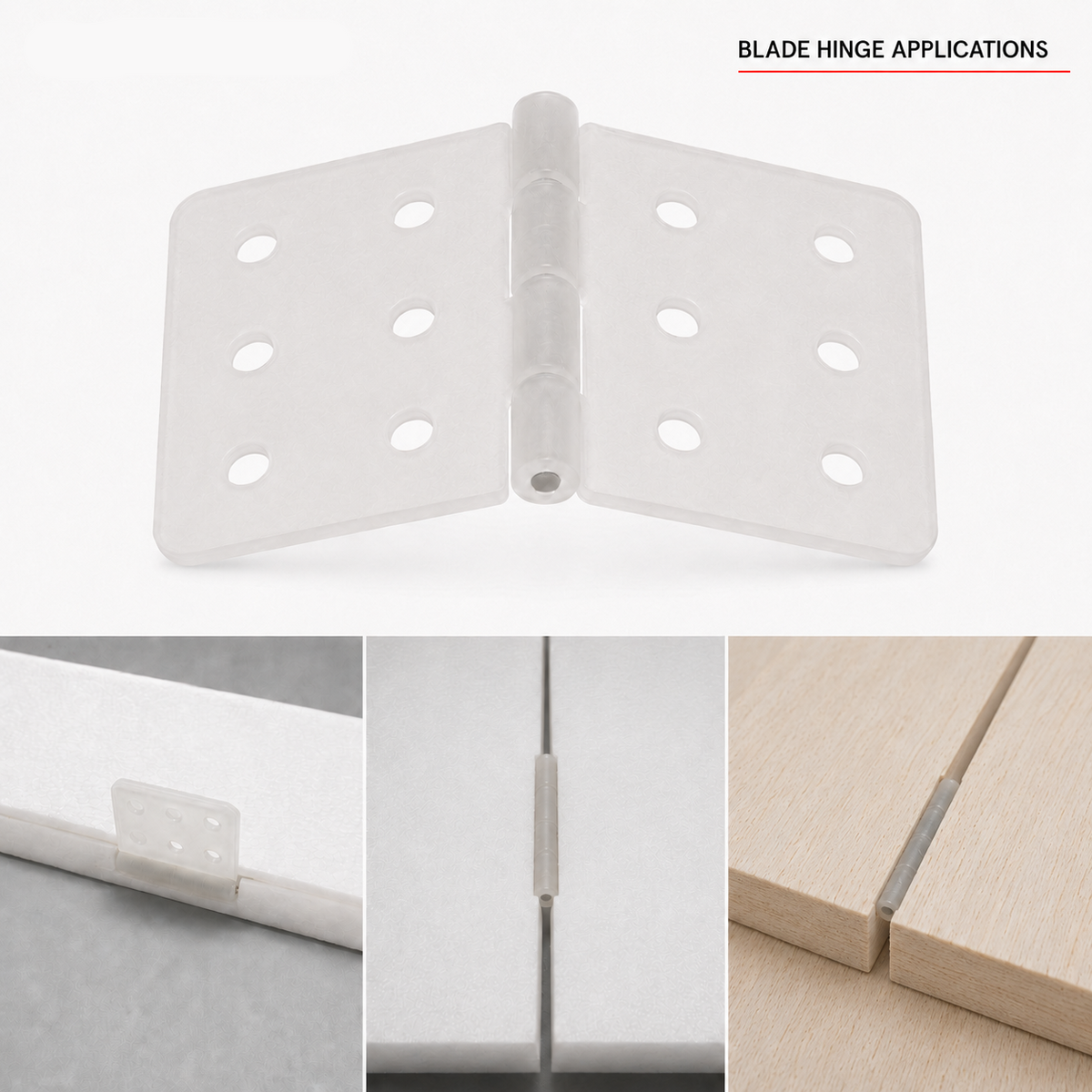

Restore damaged or separated control-surface hinges with Flight Pro Nylon Blade Hinges. Commonly used for repairing foam RC aircraft, these thin, lightweight hinges provide a strong and dependable connection between control surfaces such as ailerons, elevators, rudders, and flaps.

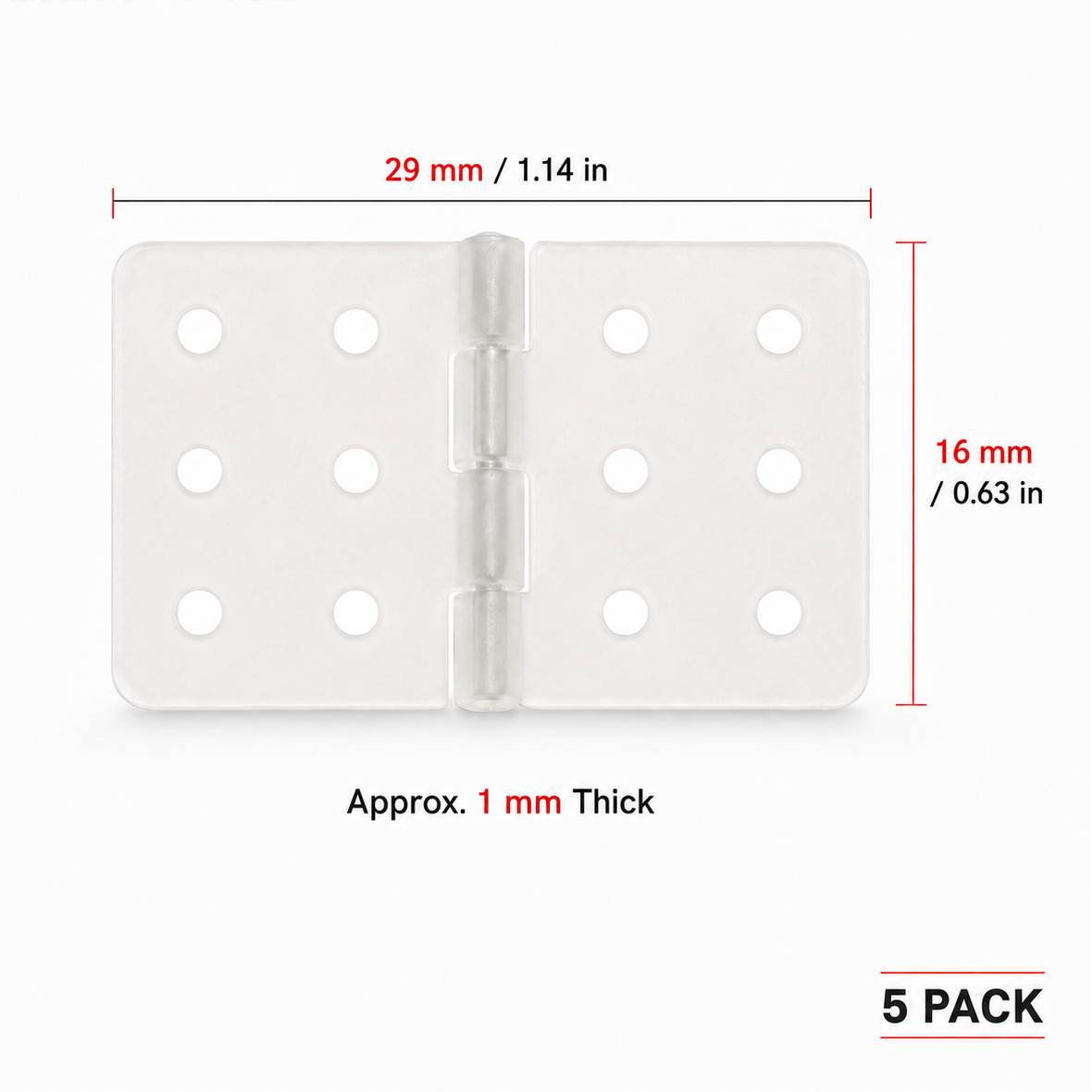

Each hinge measures approximately 5/8 inch tall by 1-1/8 inches long when fully opened. Each side inserts approximately 1/2 inch into the control surface, while the approximately 1 mm thickness allows installation with minimal foam removal.
For best results, cut matching slots into both surfaces, test-fit the hinge and verify unrestricted movement before permanently securing it with a foam-compatible adhesive.
Specifications:
- Material: Nylon
- Overall dimensions: 5/8 in. × 1-1/8 in.
- Individual hinge-side dimensions: 5/8 in. tall × 1/2 in. deep
- Approximate thickness: 1 mm
- Common application: Foam control-surface hinge repair
- Quantity: 5 hinges
