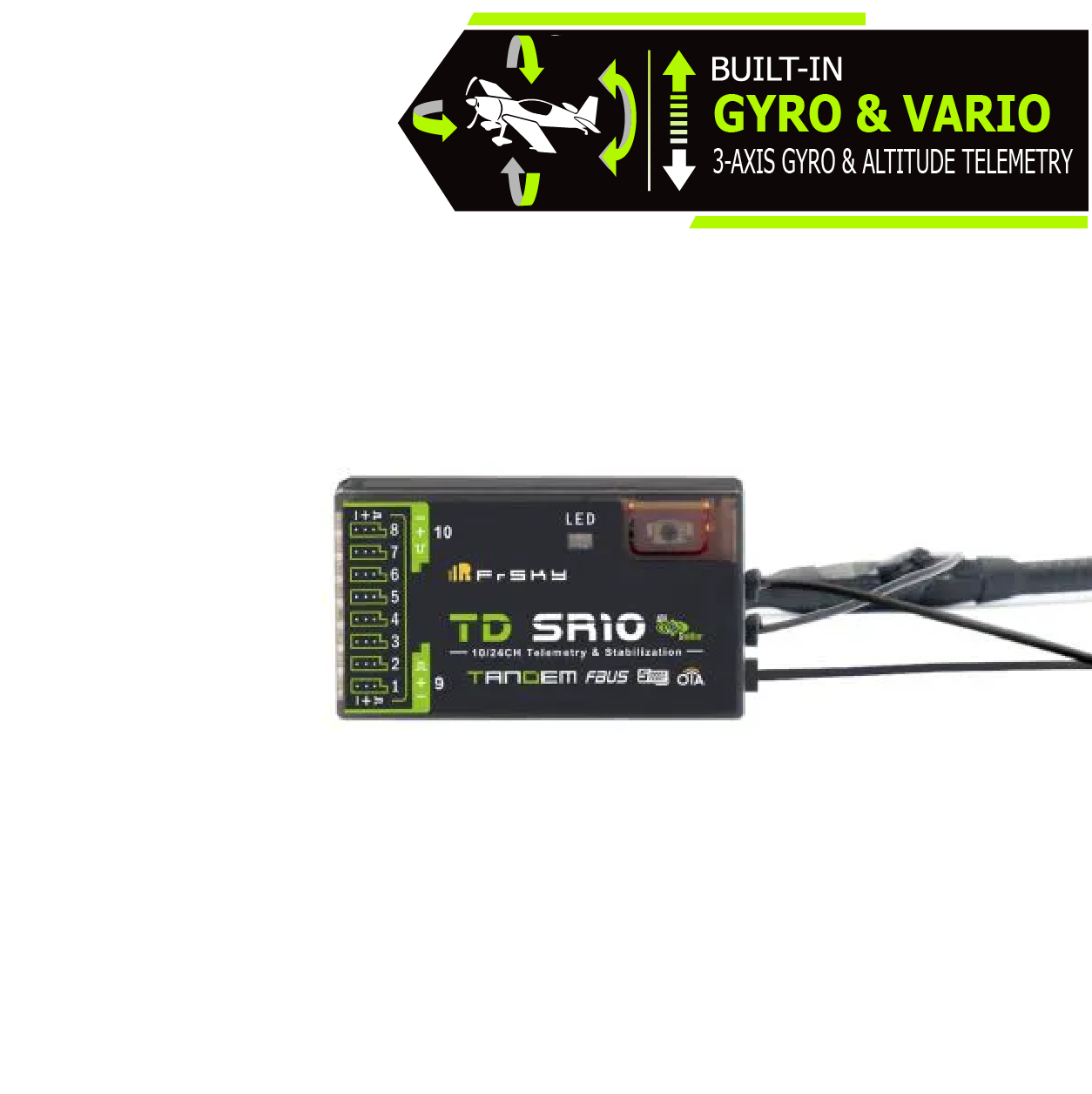

FrSky Tandem TD SR10 ADV Stabilized Receiver

FrSky Tandem TD SR10 ADV Stabilized Receiver

The FrSky TD SR10 takes the Tandem platform to the next level with dual-band performance, advanced stabilization, and fully configurable 10-channel flexibility. Operating on 2.4GHz and 900MHz simultaneously, the SR10 delivers the ultra-low latency, long-range control, and high interference resistance that the Tandem series is known for—far beyond what a traditional single-band receiver can offer.

A triple-antenna system (two 2.4G + one 900M) ensures wide, multi-directional signal coverage, while the built-in black box records power and signal telemetry to help diagnose any flight anomalies. Every one of the TD SR10’s ten ports is fully configurable, allowing assignment as PWM, SBUS, FBUS, or S.Port for clean, simple integration with sensors, Neuron ESCs, and other telemetry gear.

The SR10 also includes FrSky’s ADV Stabilizer, a major upgrade over classical gyro modes. Pilots gain enhanced stabilization profiles (Stabilization, Auto-Level, Hover, Knife-Edge), expanded channel mapping, and a fully programmable advanced mode where all pins can participate in stabilization. With built-in high-precision telemetry—altitude, vertical speed, and more—the TD SR10 provides capabilities far beyond the standard S-series stabilizing receivers.

Key Features

• Simultaneous 2.4GHz + 900MHz dual-band TD mode

• Triple-antenna design for stable, multi-directional coverage

• Integrated ADV Stabilizer with classical and advanced modes

• Built-in high-precision telemetry sensors (altitude, vertical speed, etc.)

• Built-in Black Box and voltage sensor

• 4ms Race Mode with telemetry

• OTA firmware updates

• Long-range RF performance (varies with power settings)

• 10 fully configurable channel ports

  • CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In

  • CP2–CP10: PWM / SBUS Out / FBUS / S.Port

Specifications

• Frequency: 2.4GHz & 900MHz

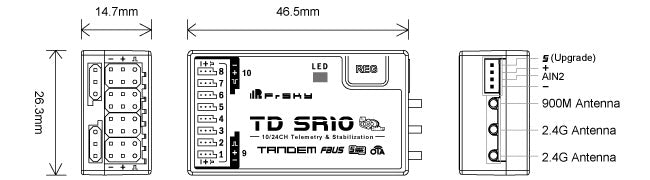

• Dimensions: 46.5 × 26.3 × 14.7 mm

• Weight: 16.6g

• Operating Voltage: 3.5–12V DC

• Operating Current: ≤180mA @ 5V

• Compatibility: FrSky Tandem transmitters & TD-protocol RF modules

• AIN2 Voltage Range: 0–35V (1:10 divider)

• Antenna System:

  • 2 × External 2.4G antennas (IPEX1)

  • 1 × External 900M antenna (IPEX1)
