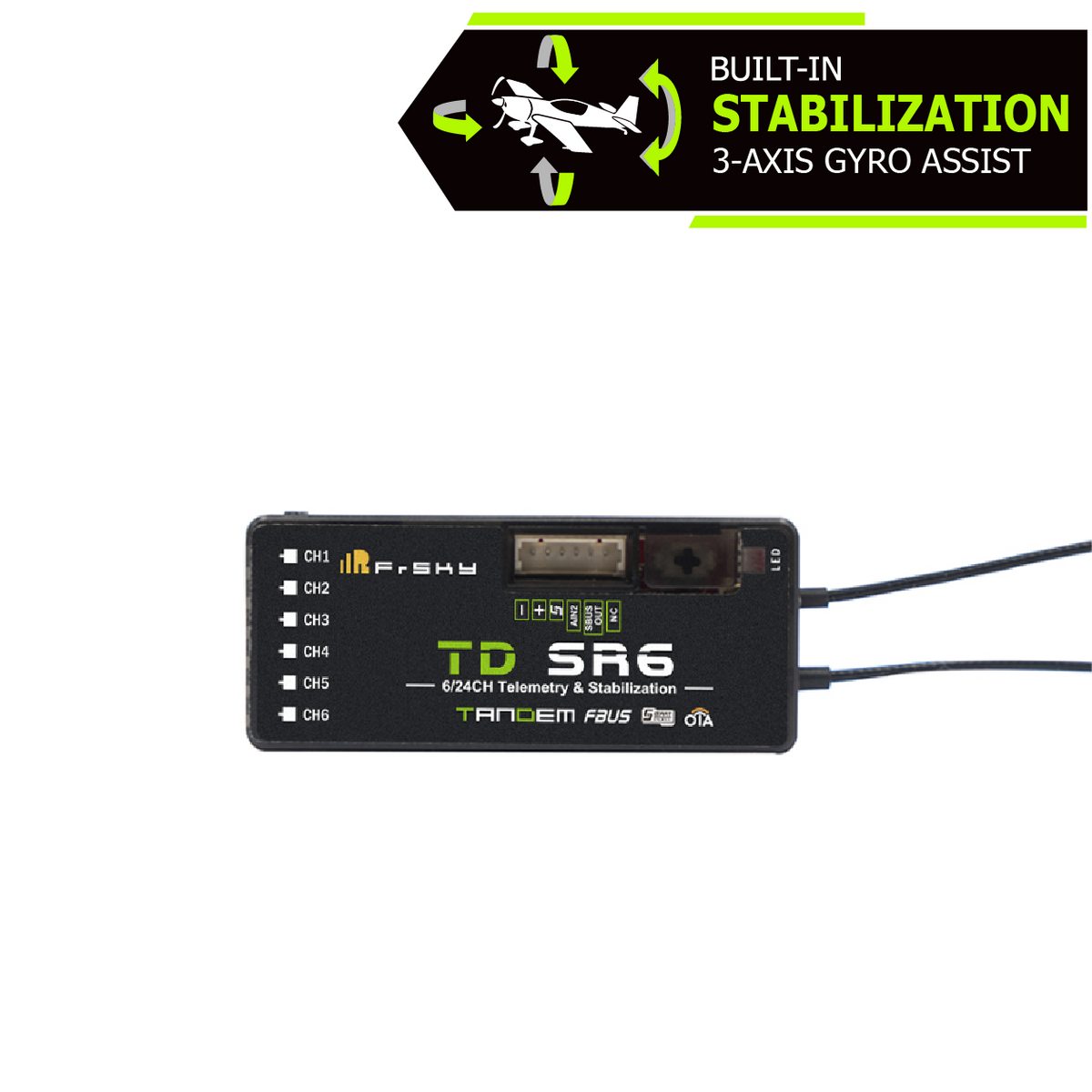

FRSky Tandem TD SR6 Stabilized Receiver

FrSky Tandem TD SR6 Stabilized Receiver

The FrSky TD SR6 brings the full strength of FrSky’s dual-band Tandem system into a compact, lightweight 6-channel receiver built for pilots who demand reliability, long-range performance, and rock-solid stabilization. Unlike traditional single-band 2.4GHz receivers, the TD SR6 operates on both 2.4GHz and 900MHz simultaneously, delivering low-latency control with excellent range and strong interference resistance.

A dual-band antenna layout provides wide, multi-directional signal coverage, while the integrated black box records power and signal telemetry for reviewing unusual events during flight. Setup stays clean and flexible thanks to SBUS Out, FBUS/S.Port compatibility, and easy integration with FrSky devices such as Neuron ESCs and advanced telemetry sensors.

The TD SR6 also features FrSky’s upgraded Stabilization System, offering enhanced classical modes including Stabilization, Auto-Level, Hover, and Knife-Edge, along with a fully programmable advanced mode where every output pin can be configured. This gives fixed-wing pilots more control, more tuning flexibility, and more confidence in demanding aircraft setups.

Compatibility Note

The TD SR6 is compatible with FrSky TANDEM Series radios and TD-mode RF modules. This includes Tandem radios such as the X18 and X20 series, as well as compatible TD-mode modules.

This is a Tandem TD receiver, not a TWIN TW receiver. It is designed for FrSky TANDEM / TD protocol systems and should not be confused with FrSky TWIN receivers used with TWIN Series radios such as the TWIN X14 lineup.

Key Features

Dual-band 2.4GHz + 900MHz simultaneous operation for maximum range and reliability
Dual-band antenna system for stable multi-directional signal coverage
Compact, lightweight 6-channel design
Integrated Stabilization Function with enhanced classical and advanced modes
Stabilization, Auto-Level, Hover, and Knife-Edge modes
Fully programmable advanced stabilization mode
Built-in Black Box telemetry recorder
4ms Race Mode with telemetry
OTA firmware update support
6 PWM outputs plus SBUS Out
SBUS Out supports 16CH / 24CH mode
FBUS / S.Port support for sensors, telemetry, and Neuron ESC integration
Compatible with FrSky TANDEM radios and TD-mode RF modules

Specifications

Frequency: 2.4GHz & 900MHz
Dimensions: 47.5 × 20.4 × 10.9 mm
Weight: 11.5g
Operating Voltage: 3.5–10V
Recommended Voltage: 3.7–8.4V
Operating Current: ≤110mA @ 5V
PWM Channels: 6
SBUS Out: 16CH / 24CH support
Telemetry: FBUS / S.Port
Antenna Connector: IPEX1
AIN2 Voltage Range: 0–35V
Compatibility: FrSky TANDEM radios and TD-mode RF modules
