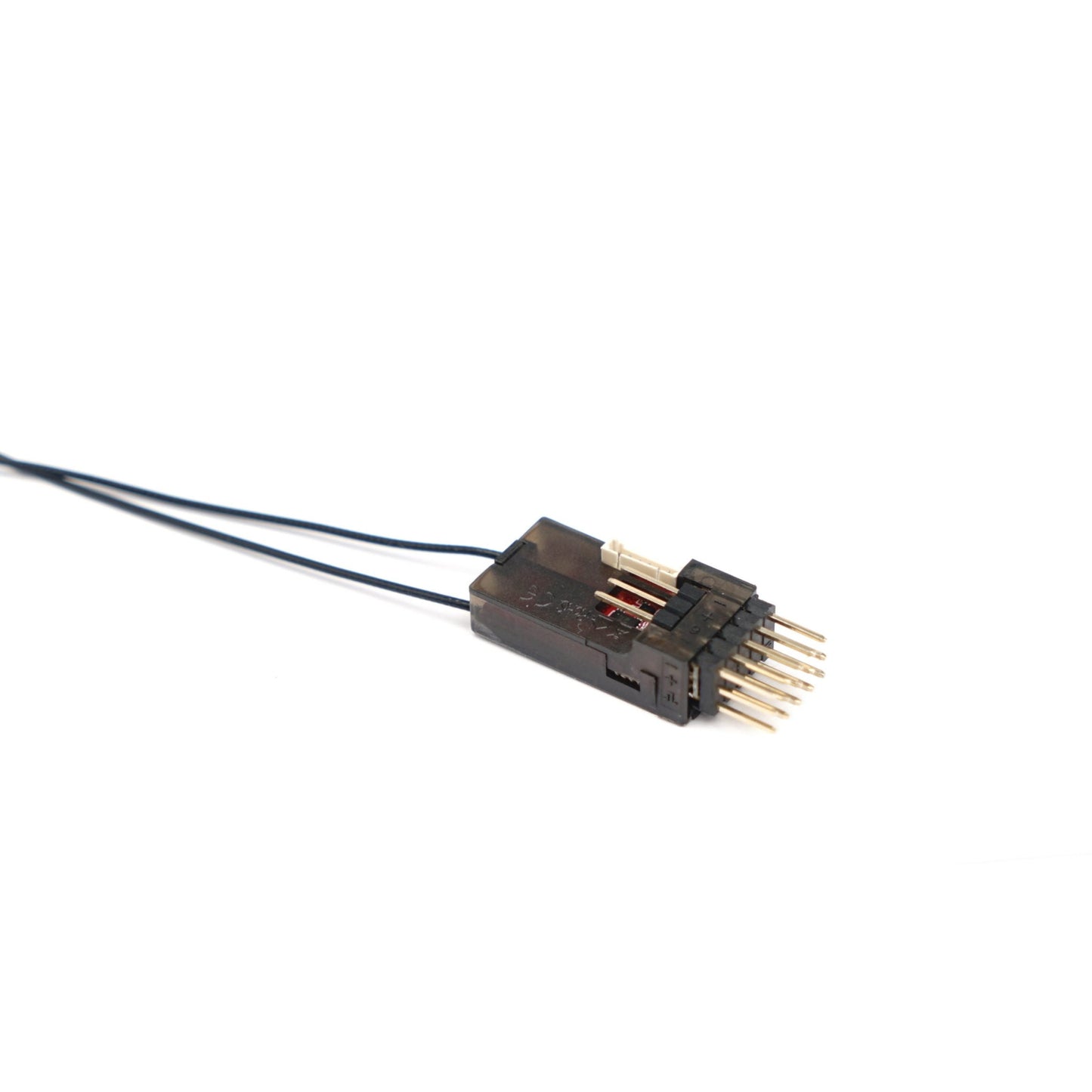

FrSky TWIN TW GR6 Receiver
The FrSky TW GR6 combines FrSky’s advanced TWIN protocol with an integrated high-precision variometer in a compact, lightweight 6-channel receiver. Designed for gliders, racing aircraft, and other models where receiver size and weight matter, the TW GR6 provides reliable dual-band 2.4GHz control along with accurate altitude and vertical-speed telemetry.
Unlike traditional backup receiver systems, the TWIN active-active protocol operates both 2.4GHz frequency bands simultaneously. Both links remain active throughout the flight instead of waiting for one signal path to fail before switching to another, helping provide improved signal stability, resilience, and long-range performance.
The TW GR6 provides 6 PWM output channels, SBUS Out, FBUS/S.Port telemetry, and an inverted S.Port connection for convenient integration with compatible flight controllers. When configured for FBUS in ETHOS, control signals and telemetry can be carried through a single wire with compatible FBUS devices, reducing wiring and simplifying aircraft installation.
An integrated high-precision variometer provides altitude and vertical-speed telemetry without requiring a separate sensor. The receiver also supports FrSky’s 4ms Race Mode with telemetry for applications requiring fast response and low latency.
Compatibility Note
The TW GR6 is compatible with FrSky TWIN Series radios and RF modules operating in TW mode. This includes the FrSky TWIN X14, TWIN X14S, and other TWIN Series transmitters that support the TW protocol. It is not a Tandem TD receiver and should be used with TWIN/TW-compatible systems.
Key Features
Dual active 2.4GHz TW protocol for stable signal performance
Active-active dual-frequency operation, not simple standby redundancy
Integrated high-precision variometer
Accurate altitude and vertical-speed telemetry
Dual 2.4GHz antenna system for reliable signal coverage
Compact and lightweight 6-channel receiver design
6 PWM output channel ports
SBUS Out with 16CH / 24CH support
FBUS / S.Port telemetry support
Inverted S.Port for compatible flight controllers
Single-wire FBUS support for compatible telemetry and control devices
4ms Race Mode with telemetry
Built-in Black Box function
Long control range depending on RF power settings
Over-The-Air OTA firmware update support
Compatible with FrSky TWIN Series radios and RF modules in TW mode
Specifications
Frequency: Dual 2.4GHz
Dimensions: 38.1 × 14.6 × 9.5 mm
Weight: 5g
Operating Voltage: 3.5–10V
Minimum Voltage During Operation: Above 2.8V
Operating Current: 60mA @ 5V
PWM Channels: 6
SBUS Out: 16CH / 24CH support
Telemetry: FBUS / S.Port
Inverted S.Port: Supported
Altimeter Measurement Range: −700m to 10,000m
Altimeter Resolution: 0.1m
Vertical Speed Measurement Range: ±10m/s
AIN2 Voltage Measurement Range: 0–36V with external connection
Antenna Connector: IPEX4
Compatibility: FrSky TWIN Series radios and RF modules in TW mode
