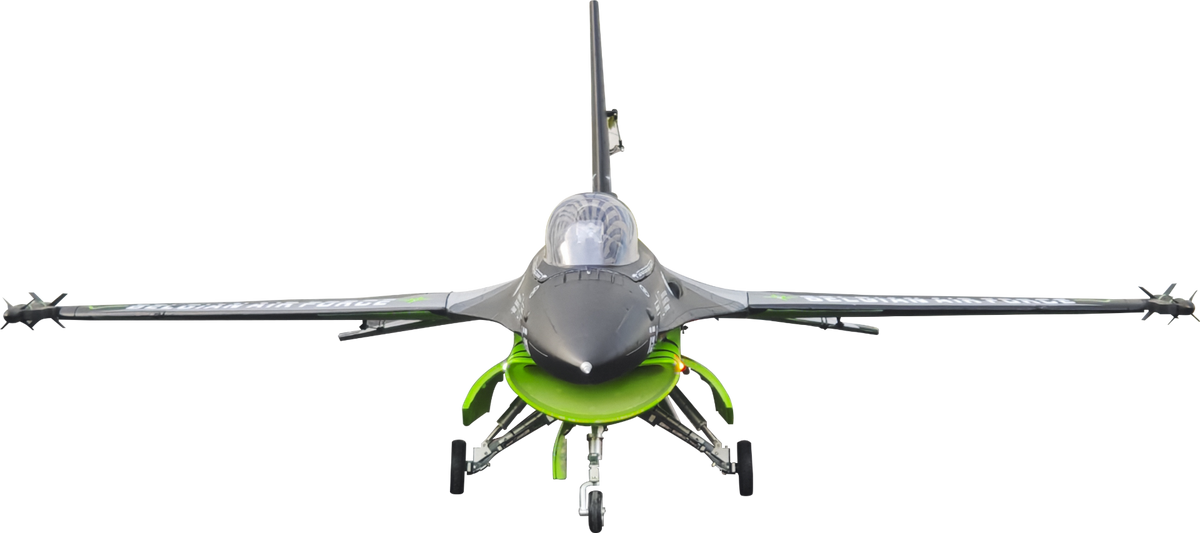

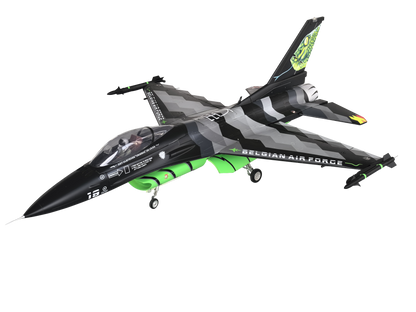

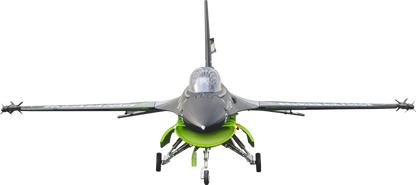

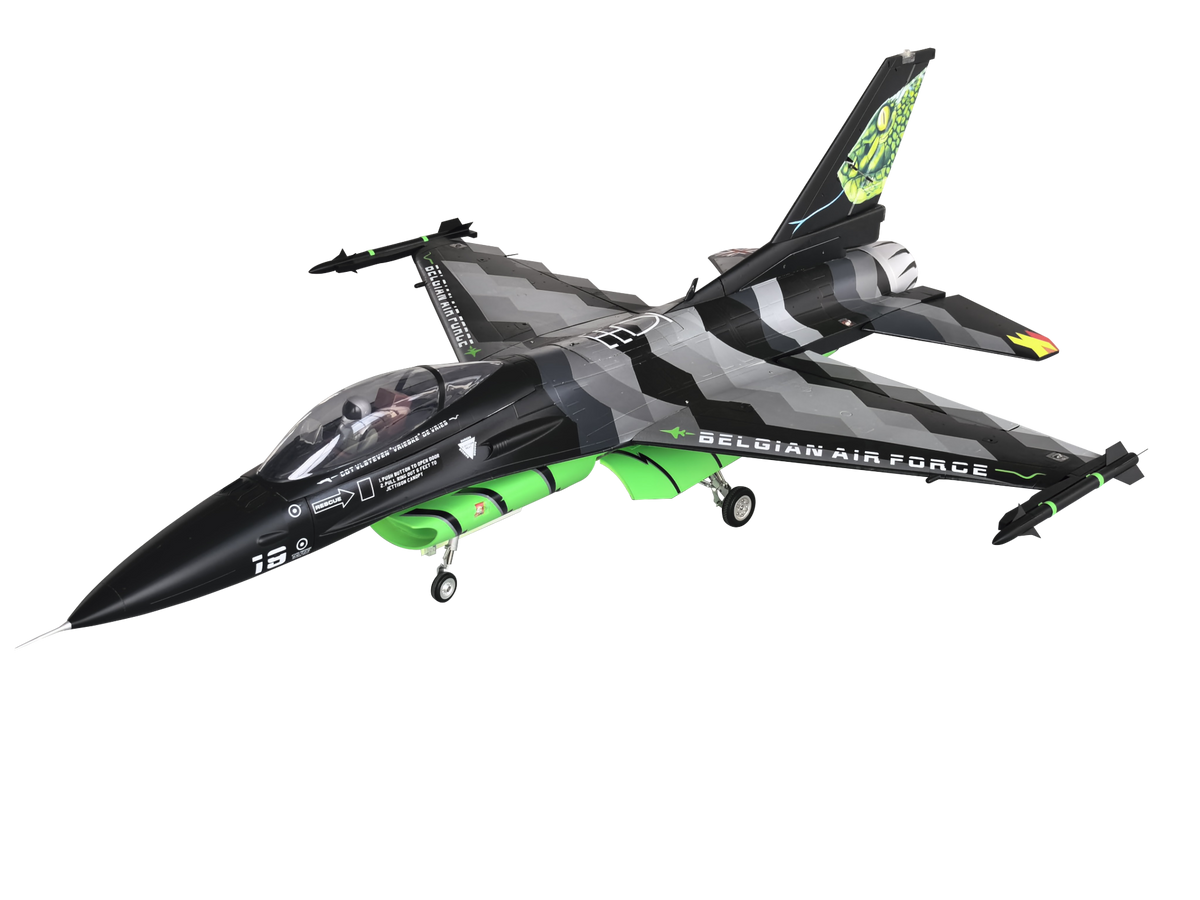

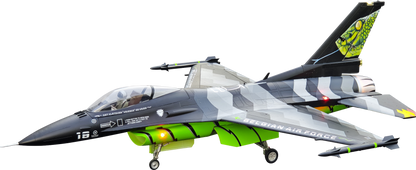

The HSD HF-16 Dream Viper 105mm EDF jet combines 12S electric power with striking F-16 scale detail. Built with AeroCore 20 Pro EPO foam, it features an MFC-2085 control system, 12 digital servos, a throttle-responsive LED afterburner effect, all-metal retracts, and electromagnetic brakes. Designed for intermediate pilots with EDF experience. Transmitter, receiver, flight and control-system batteries, and charging equipment are sold separately; final assembly and setup are required.
The HF-16 Dream Viper combines a striking F-16-inspired silhouette with 12S electric power, integrated aircraft electronics, and detailed mechanical systems. AeroCore 20 Pro construction provides the foundation for a premium EDF platform with commanding scale presence.
HF-16 DREAM VIPER • PNP
ENGINEERED FOR FLIGHT
The Dream Viper brings propulsion, landing hardware, electronics, and scale details together in one factory-equipped PNP aircraft. Explore the systems behind the flying experience.
A 105mm, 11-blade S-EDF pairs with a D4270-KV750 brushless motor and Hobbywing 160A high-voltage ESC. Two 6S flight batteries connect in series for 12S operation, with AS150 connections at the main ESC.
Recommended flight packs are two matching 6S 5000–6000 mAh 70C LiPo batteries.
The HSD MFC-2085 centralizes receiver connections, flight controls, and auxiliary aircraft systems. Organized wiring and integrated connections bring retracts, gear doors, lighting, and electromagnetic braking together in one accessible installation.
Two separate 2S 7.4 V 1800–2200 mAh batteries supply the aircraft control system independently of the 12S propulsion batteries.
Purpose-built landing hardware supports the aircraft through touchdown, ground handling, and controlled rollout.
All-metal electric retracts and shock-absorbing struts help manage landing loads. Bearing-supported wheels provide smooth rolling, while servo-operated nose-wheel steering supports precise ground handling.
Integrated electromagnetic wheel brakes provide controlled deceleration, helping pilots manage speed during landing rollout and ground operations.
A matte-painted finish and waterslide decals give the Dream Viper its distinctive appearance. Factory-installed LED lighting and a throttle-responsive afterburner effect bring another dimension to its scale presence.
AeroCore construction, structural reinforcement, integrated connections, and installed digital servos form the foundation of the HF-16 PNP platform.
AeroCore 20 Pro EPO foam combines a dense molded structure with carbon-fiber reinforcement and ABS components for a solid, detailed airframe.
Screw-fastened major components and plug-in wing electrical connectors simplify assembly and preparation for transport.
Four 35 g servos operate the ailerons and elevators. Eight 12 g servos handle the rudder, nose-wheel steering, gear doors, and locking mechanisms.
