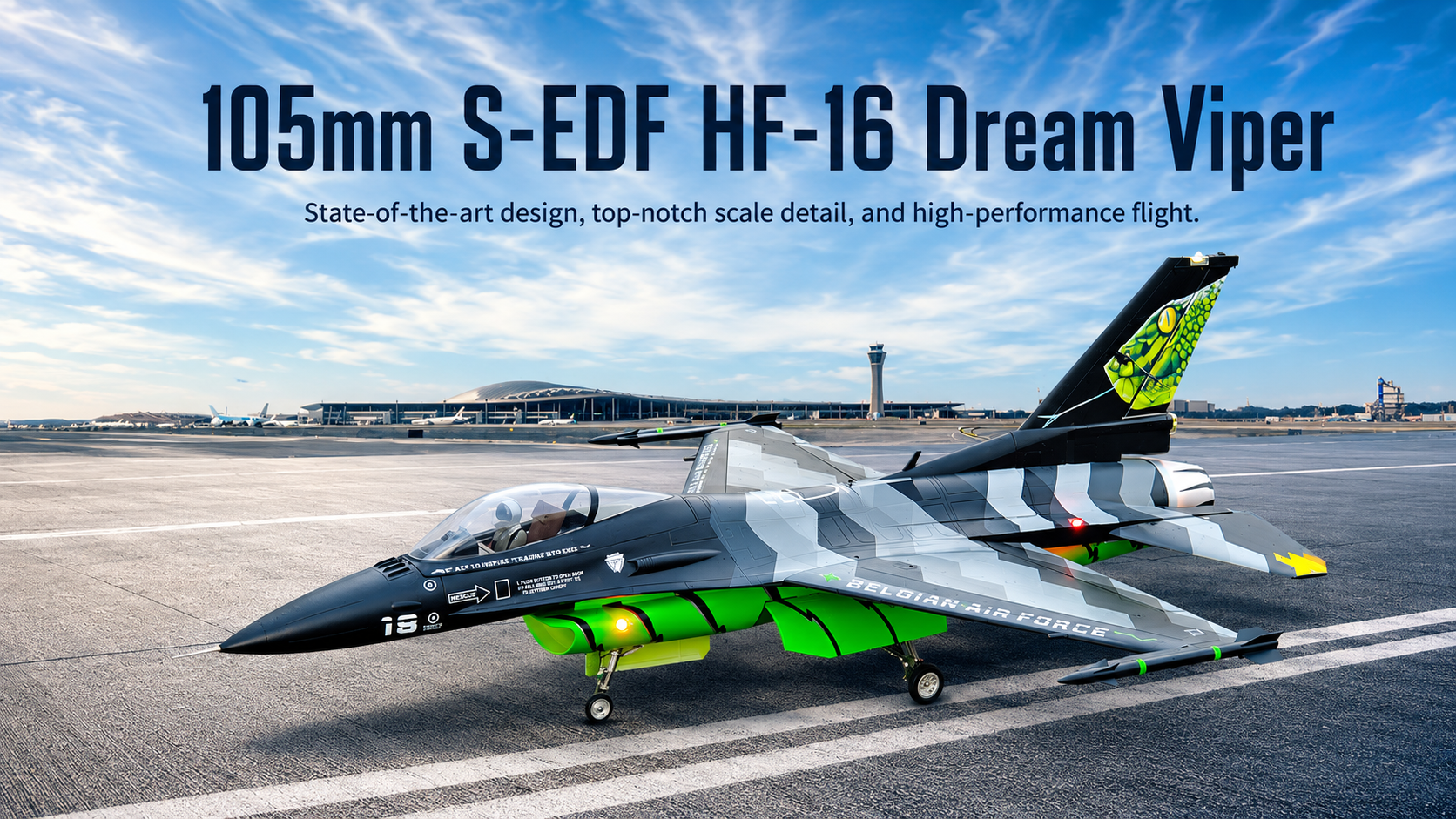

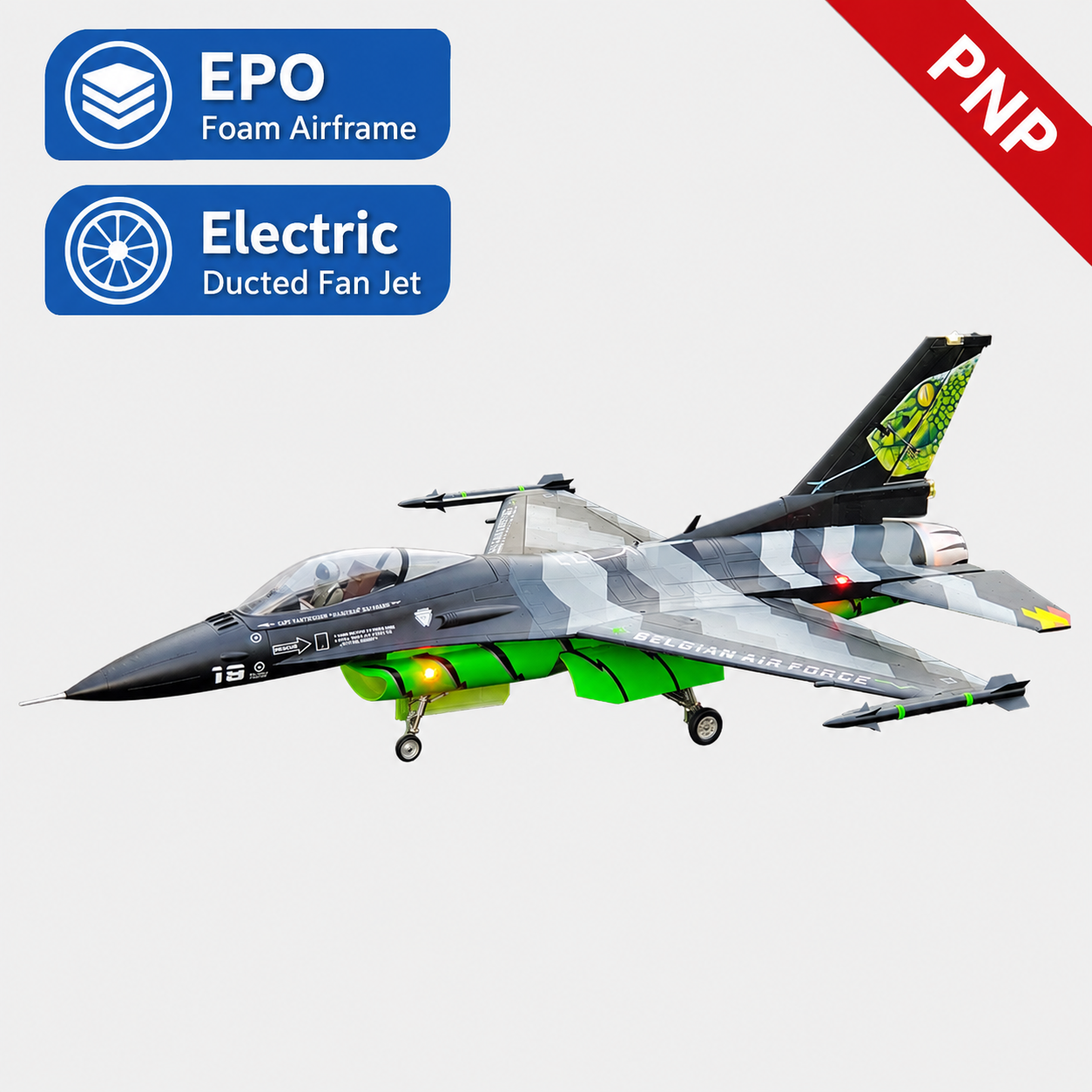

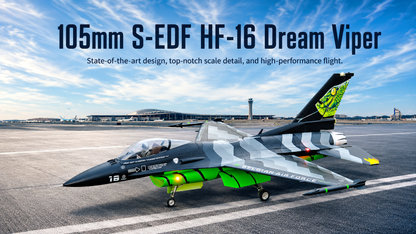

HSDJETS S-EDF 105mm HF-16 Dream Viper PNP

The HSDJETS S-EDF 105mm HF-16 Dream Viper is a large-scale, high-performance 12S electric ducted fan jet built for advanced RC pilots who want serious speed, scale presence, and the latest HSD electronics.

This latest-version HF-16 comes equipped with HSD’s current technology package, including the MFC-2085 control system, Hobbywing 160A 12S ESC, 105mm 11-blade S-EDF power system, LED lighting, electric retracts, and electromagnetic brakes.

With its aggressive Dream Viper color scheme, matte painted finish, 49-inch wingspan, and approximately 180 km/h cruising speed, this aircraft is built to stand out on the flight line and in the air.

Key Features

• Latest-version HSD 105mm S-EDF HF-16
• Dream Viper color scheme with matte painted finish
• 105mm 11-blade EDF system
• 4270 / 750KV brushless motor
• Hobbywing 160A 12S ESC with AS150 connectors

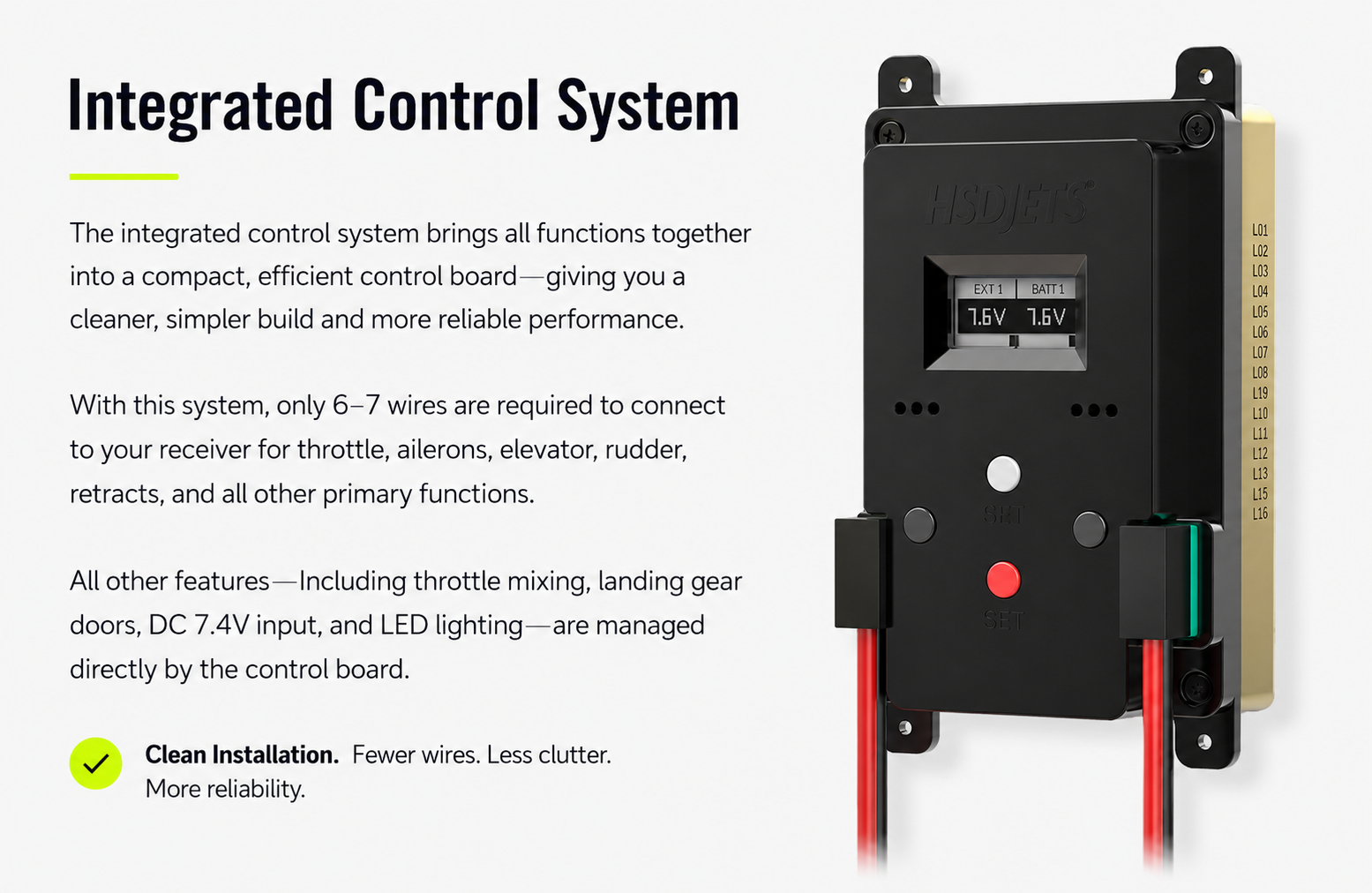

• HSD MFC-2085 control system
• Spektrum and other single-wire receiver connection capable

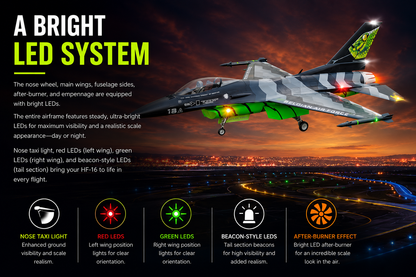

• LED light system
• Electromagnetic brake system

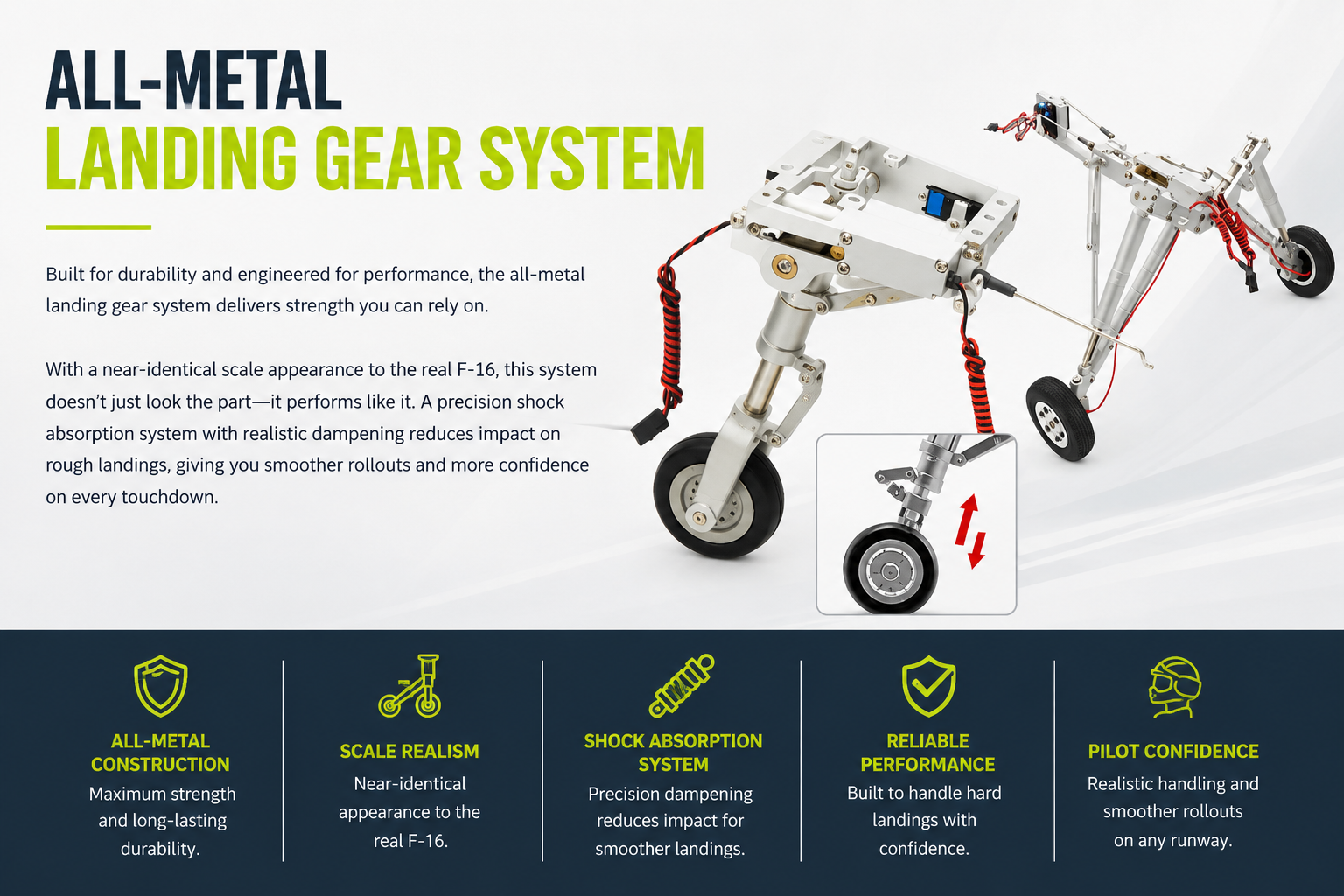

• Metal electric retractable landing gear
• Metal gear servos installed
• Designed for advanced RC pilots
• PNP configuration — transmitter, receiver, batteries, and charger required

Important Battery Connector Note

This aircraft uses AS150 battery connectors from the ESC.

If your 6S batteries do not have AS150 connectors, you will need to either solder AS150 connectors onto your batteries or purchase an AS150 to EC5 12S wiring harness separately.

Required to Complete

This is a PNP aircraft and requires the following items to complete:

• 6-channel or higher transmitter and receiver
• Two 6S 22.2V 5000–6000mAh LiPo batteries with AS150 connectors
• 2S 7.4V 1800–2000mAh LiPo battery for the MFC system with XT60 or T-style connector
• Compatible LiPo battery charger
• Basic assembly tools

Recommended Power Setup

Main Flight Batteries:
Two 6S 22.2V 5000–6000mAh LiPo batteries with AS150 connectors

MFC Battery:
2S 7.4V 1800–2000mAh LiPo with XT60 or T-style connector

Charger:
Compatible LiPo charger capable of charging 6S batteries

Specifications

Installed Servos

• 25g metal gear servo with 150mm lead x4 — elevator and ailerons
• 12g metal gear servo with 260mm lead x1 — rudder

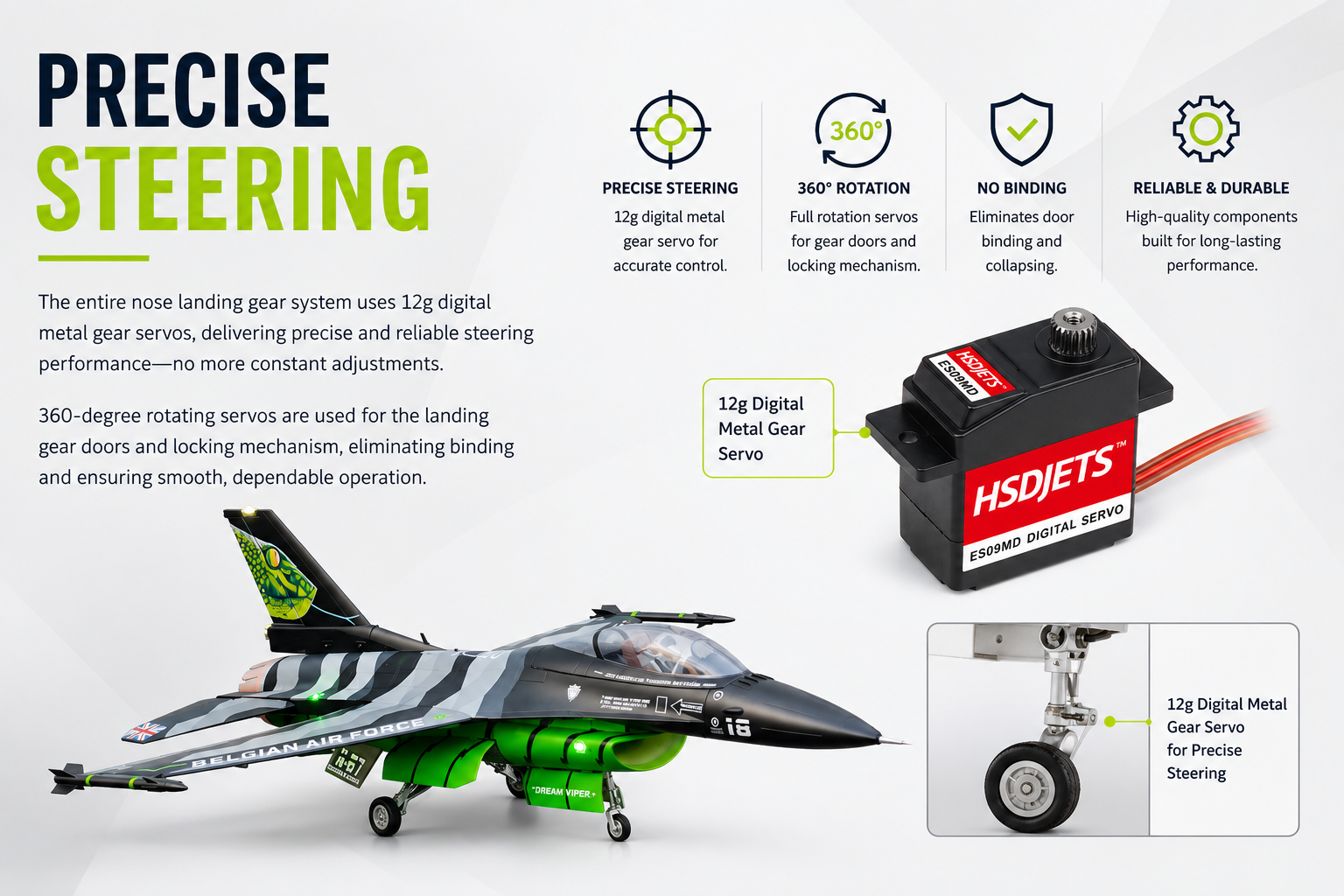

• 12g metal gear servo with 600mm lead x1 — nose wheel steering
• 12g metal gear servo with 460mm lead reverse x1 — nose door
• 12g metal gear servo with 400mm lead reverse x1 — left door
• 12g metal gear servo with 400mm lead x1 — right door
• 12g metal gear servo x3 — 360° lock hatch cover

Control Surfaces & Functions

Package Includes

• Fuselage x1
• Left wing x1
• Right wing x1
• Left horizontal stabilizer x1
• Right horizontal stabilizer x1
• Vertical stabilizer x1
• Nose x1
• Cockpit canopy x1
• Left missile x1
• Right missile x1
• Left tail fin x1
• Right tail fin x1
• Main wing carbon tube, L=715mm, diameter=10mm
• White sticker x1
• Accessories bag x1
• Nylon airspeed tube x1
• Nylon antenna x1
• Pull rod 1.5×52mm x1
• Nylon rudder horn x3
• Nylon rudder horn gasket x3
• PM3×10mm screw x4 for wing
• PA3×10mm screw x4 for vertical stabilizer
• PA2×12mm screw x3
• PA3×15mm screw x1 for nose
• Long servo arm x1
• Nylon clevis x2
• Manual x1

Flight Pro Setup Recommendation

For pilots who want a cleaner radio setup, Flight Pro recommends pairing this aircraft with a capable FrSky transmitter and receiver package. The HF-16 supports single-wire receiver connection options, making it a good candidate for a properly planned receiver and radio setup.

Recommended Flight Pro add-ons:

• FrSky transmitter package
• Compatible FrSky receiver
• AS150 to EC5 12S wiring harness, if needed
• Spare nose gear components
• Spare missiles / wing hardware
• Preflight checklist
• Setup support before maiden flight

Pilot Skill Level

This aircraft is intended for advanced RC pilots. The HF-16 is a large, fast, 12S EDF jet with retracts, brakes, lighting, and a multi-function control system. It is not recommended as a first EDF jet or beginner aircraft.

Notes Before Ordering

Please confirm that you have the correct batteries, connectors, charger, transmitter, receiver, and flying site before ordering. This aircraft uses AS150 battery connectors and requires two 6S LiPo batteries for flight power, plus a separate 2S battery for the MFC system.
