Twin X14

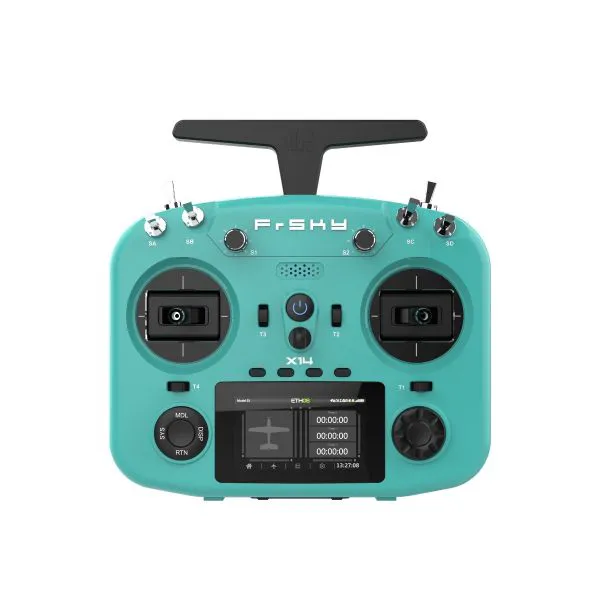

FrSky TWIN X14 – Dual-Band Power, Compact Precision

The TWIN X14 is FrSky’s next-gen radio system, designed for advanced pilots who demand power, flexibility, and reliability. Unlike typical active-standby redundancy systems, the TW protocol uses dual active 2.4GHz frequencies simultaneously—delivering faster response, better range, and rock-solid signal stability.

With two internal 2.4GHz antennas and an external antenna frame, the TWIN X14 ensures wide multi-directional signal coverage. It supports TW mode, ACCESS, and ACCST D16 protocols, making it compatible with a wide range of FrSky receivers.

Key Features:

• Dual-Band 2.4GHz TW RF with simultaneous signal transmission
• ETHOS OS – intuitive, powerful, and fully customizable
• High-Precision Hall Sensor Gimbals (metal panel – X14 / MC18 CNC gimbals – X14S)
• Low Latency (<4ms) with full telemetry support
• Compact & Ergonomic form factor based on the Tandem X18
• Easy-Access Controls – 4 customizable front buttons, 2 rear momentary buttons, top sliders/switches
• 2.95" Color TFT Display (640×360 resolution)
• Built-In 128MB Flash Storage (X14) or 512MB (X14S) + TF card slot
• USB-C Charging & Data Port with 2600mAh 2S LiPo support
• Gyroscope Sensor (X14S only)
• Optional CNC Aluminum Stand Mount for hands-free use
• Lite External Module Bay for third-party RF support
• Vibration & Voice Alerts, wireless PARA training system

Perfect For:

• Glider pilots using quick trims for real-time flap control
• FPV racers and long-range pilots needing signal reliability
• Fixed-wing enthusiasts looking for pro-grade customization
• Anyone upgrading from ACCESS/D16 to the latest TW tech

Specs:

• Dimensions: 192 × 193 × 72 mm
• Weight: 610g (excluding battery)
• Channels: Up to 24
• Battery Bay: 69.5 × 38.5 × 20 mm
• Operating Voltage: 6.5V – 8.4V
• Current Draw: 330mA @ 7.4V
• Temp Range: -10°C to 60°C
• Charging Port: USB Type-C (5V/2A min)
• Compatibility: ACCST D16 / ACCESS / TW

🛒 Ready to fly with the best?
The FrSky TWIN X14 is built for pilots who refuse to compromise. Add it to your flight deck today.
